No.

Name

Specifications

Quantity

Technical Parameter

Reference Pictures

01

Malt Mill

1000kg/h

1

Dual-rollers type; equipped with motors, pulleys, belts, etc.
Material: stainless steel

02

Automatic Feeder

Stainless steel spiral conveyer

1

Usage: feeding lifting of malt metering storage tank

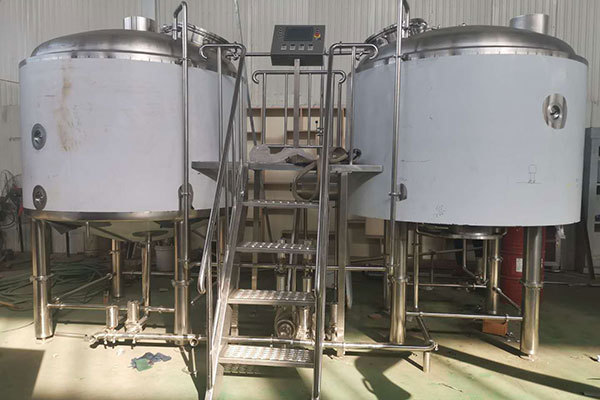

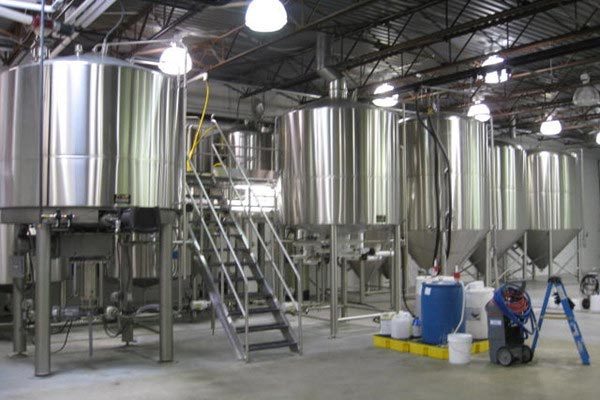

2. Saccharification System

01

Mash Tun

2000L

1

1. Material: national standard 304 stainless steel
2. The total volume is 4000L and the effective working volume is 3000L.
3. Size: φ2200×3200mm
4. Heating mode: heated by conical bottom steam jacket, with pressure gauge and trap.
5.Temperature measuring method: Temperature sense probe.
6. Thickness of insulation layer: 100mm.
7. Thickness of inner cylinder is 3.0 mm: The polishing accuracy of inner liner is 0.4-0.6μm.
8. The outer layer is 2.0mm, with casting fine sanding belt at welding joint.
9. Miller plate thickness: 1.5mm, end enclosure thickness: 3mm.
10. Mixing mode: upper reducer mixing, motor frequency control, speed ratio 1:29, motor power: 3.0KW/380V/50HZ
11. Tun processing technology: the top of the tun is enclosed, with a sight glass, the whole tun adopts argon shielded welding technology.
12. CIP cleaning device with rotary washing ball
13. RV NRV NMRV
14. Adjustable height of stainless steel legs with footpad support
from adding water, saccharification and decomposition at 2-4 stages of temperature, killing enzymes, the total time is about 2.5 hours.

02

Filter Tank

2000L

1

1. Material: National standard sanitation 304 stainless steel
2. The total volume is 4000L and the effective working volume is 3000L.
3. Size: φ2300×3500mm
4.Temperature measuring method: temperature sensing probe
5. Thickness of insulation layer: 100mm.
6. Thickness of inner cylinder is 3.0 mm. The polishing accuracy of inner liner is 0.4-0.6μm. The end enclosure thickness: 3mm.
7. The outer layer is 2.0mm, with casting fine sanding belt at welding joint.
8. Tiller knife: upper RV NRV NMRV tiller knife, Motor frequency control, speed ratio 1:43, motor power: 3.0KW/380V/50HZ
9. Tun processing technology: the top of the tun is enclosed, with a sight glass, the whole tun adopts argon shielded welding technology.
10.CIP cleaning device with rotary washing ball
11. Adjustable height of stainless steel legs with footpad support
12. Process description: filtration, add hot water at 78℃ to wash the tank, the total time is about 2-2.5 hours.

Filter Sieve Plate

Milling filter plates, spacing between filter plates is 0.7 mm. It is easy to be disassembled. The filtering effect is better.

03

Boiling/Settling Pot

2000L

1

1. Material: National standard sanitation 304 stainless steel
2. Total volume is 5000L, effective working volume is 3000L.
3. Size: φ2300×3500mm
4. Heating mode: heated by conical bottom steam jacket
5.Temperature measurement mode: temperature sense probe, temperature is displayed in control cabinet
6. Heating mode: heated by steam jacket
6. Thickness of insulation layer: 100mm.
7. Thickness of inner cylinder is 3.0 mm. The polishing accuracy of inner liner is 0.4-0.6μm.
8. The outer layer is 2.0mm, with casting fine sanding belt at welding joint.
9. Thickness of Miller plate: 1.5mm
10. Thickness of upper end enclosure: 3mm
11. Tun processing technology: the top of the tun is enclosed, with a sight lamp, the whole pot adopts argon shielded welding technology.
12. CIP cleaning device with rotary washing ball
13. Decorative pipe: with stainless steel decorative tube
14. Adjustable height of stainless steel legs with footpad support
15. Process description: boiling time 1-1.5 hours; Tangent counterclockwise swirling sink; 30 minutes for standing settling, 40-60 minutes for cooling

04

Hot Water Tank

4000L

1. Total volume is 4200L, and effective volume is 3000L 2. Steam heating; automatic temperature control for hot water tank;

3. Top manhole. The top is equipped with overflow pipe, temperature blind pipe, liquid level pipe, overflow port, CIP rotary spray ball device.
4. Insulation layer is 80mm, inner tank is 3mm, and outsourcing is 2mm.
5.national standard 304 stainless steel.

05

Wheat juice pump

5m3/h

1

Frequency conversion speed regulation; temperature resistance 120℃, inlet φ51, outlet φ38 clamp connection; head 24m
Power: 2.2KW/380V/50HZ

06

Filter pump

5m3/h

1

Frequency control; Temperature endurance: 120℃, with inlet parameter 51, export parameter 38 band connection; 24 m lift
Power: 2.2 KW / 380 v / 50 hz

07

Hot water pump

5m3/h

1

Frequency control; Temperature resistance 120℃, inlet φ 38, exit φ 32 clamp connection; 24 m lift
Power：2.2KW/380V/50HZ

08

Hop filter

1

Used to filter hops

09

Steam generator

1

Brand name: Zhongrui
Steam rating：200kg/h
Power：144kw
Soften equipment with water

10

Heat exchanger

BR0.1/30

30㎡

1

A five-lead cooling program, suspension type, external dimensions: 450×550×650; The cold-water inlet and outlet g3/4, the wort inlet g3/4, the cold-water outlet phi 38SMS external thread, and the wort inlet and outlet phi 38SMS external thread
Material: 304 stainless steel

09

Operation platform,

Stainless Steal

10

Saccharification combination pipeline

1

Sanitary grade stainless steel valves and piping 06Cr19Ni10

11

Wheat juice thermometer

1

Stainless steel metal thimble thermometer WNG/WNY(0～100℃)

12

Temperature and oxygen combination

Venturi four

1

Stainless steel, used for export of wort in heat exchanger 06Cr19Ni10

Titanium rod

Ф22×125

1

13

Sugar measuring system

Measuring cylinder

1

Stainless Steel

A saccharometer for adhesion temperature

10°, 20°

10°*2, 20°*2

14

Rake

L=1500

1

Stainless Steel

3.   The fermentation system

01

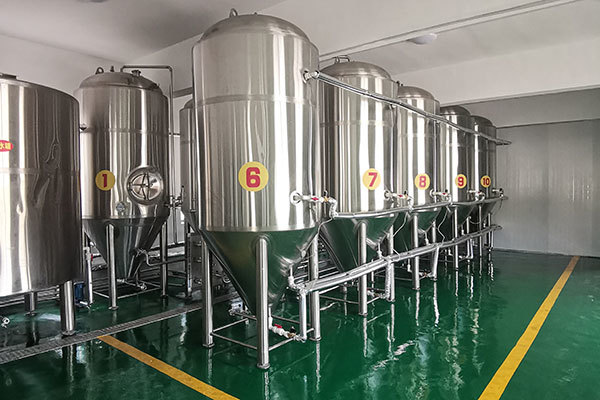

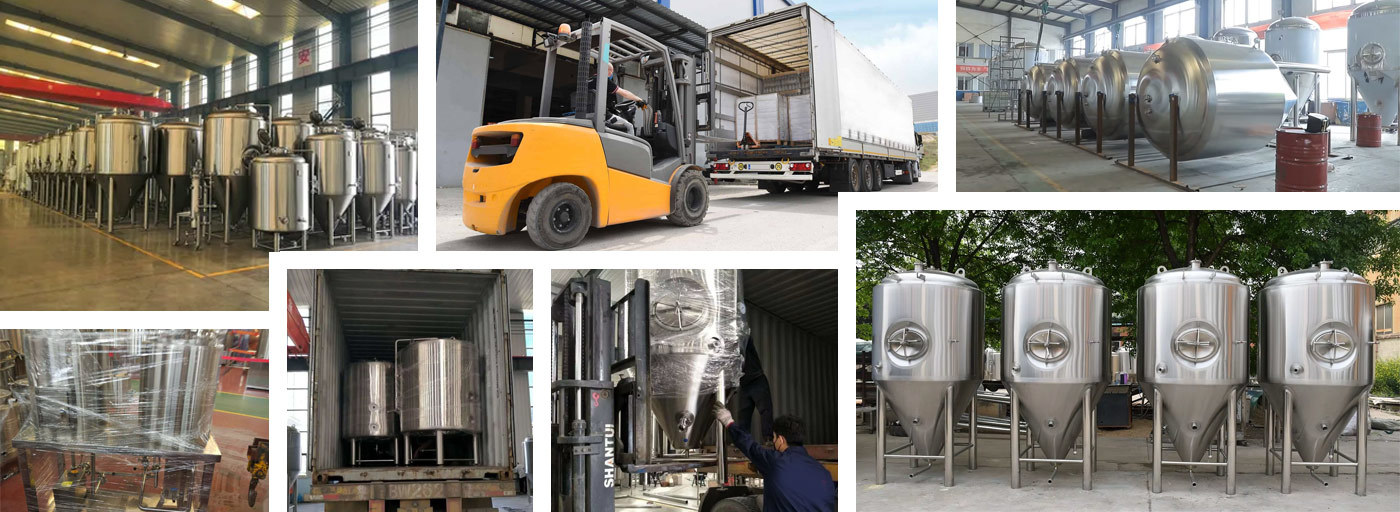

Fermentation tank

2000L

15

National Standard 304 Stainless Steel
Single tank, single control, cooling jacket of maitre plate
Boundary dimension：φ1560×3490mm；The total volume 3950L,Effective volume 3000L；
Insulation layer thickness 80mm; Liner thickness: 3.0mm, 304 stainless steel；
Internal mechanical polishing, polishing precision 0.4-0.6μm；The thickness of the outsourcing 2.0mm，304 Stainless Steel；Outer plate surface protection, welding line throwing 40mm fine sand strip; Miller plate thickness：1.5mm
Valves and accessories. Upper side manhole door, heat transfer area of 3.8 square meters, water seal mechanical pressure relief valve, aseptic sampling valve, exhaust valve, ice water control valve, ball washing; Automatic control of temperature and pressure。
R arc folding technology is adopted to ensure that the contact part of the tank and the lower cone has no dead Angle, beautiful and generous.
Feeding mode: wort enters through the bottom of fermentation tank, yeast enters through the bottom of fermentation tank
The top of the tank is equipped with a hop dry ejector
Discharging mode: discharging combination at the bottom of the tank, discharging from the outlet of beer, discharging from the sewage outlet of yeast and impurity.
Other key valves are matched

Pressure valve

Water sealed mechanical pressure valve

02

Mobile yeast addition tank

20L

1

1.Stainless Steel
2.Effective volume 10L
3.Inner tank polishing, sandblasting treatment
4、Valves, accessories matching

03

Beer tube

2

Food hose Ф32 L=15m

04

Refrigerant piping

PPR

05

Thermal insulation pipe

Polyethylene, with PAP board and tape

4.Refrigeration system

01

Ice water tank

7000L

1

The total volume is 7500L, the effective volume is 7000L; Insulation layer thickness 80mm; Liner thickness: 3mm; Outsourcing 2.0mm, internal and external plate protection, internal pickling of welding seam, external sanding belt; Valves and accessories. Rational use of refrigerant, energy saving

02

Cold Water Tank

4000L

1

Total volume 4200L, effective volume 4000L; Insulation layer thickness 80mm; Liner thickness: 3mm; Outsourcing 2.0mm, internal and external plate protection, internal pickling of welding seam, external sanding belt; Valves and accessories. Rational use of refrigerant, energy saving

03

Refrigerator

 15HP

2

 Boundary dimension:1250×900×1000
Brand: Tempsler

04

Ice water pump

5t/h
25m

1

Stainless steel, frequency control

05

Cold water pump

5t/h
25m

1

Stainless Steel, Frequency control

06

Refrigerant piping, valves

PPR

07

Tubular holder

Polyurethane (pu)

5.CIP Cleaning system

01

Disinfection tank

200L

1

Internal and external plate surface protection, weld sand polishing belt; Valves and accessories.

02

Lye jar

200L

1

Internal and external plate surface protection, weld sand - throwing belt；   Valves and accessories。

03

Clean the pump

3m3/h
18m

1

 Stainless Steel

04

Pipeline valve

1

Sanitary grade stainless steel 06Cr19Ni10

05

Steel wire hose

L=2m

1

Food grade hose

6.Control system

01

Control cabinet

Knob control cabinet

2

A saccharification control cabinet is located on the saccharification system
A fermentation control cabinet
Function: control the whole brewing process
Box material: anti - electric spray molding

02

Temperature detection

Temperature sensor

Temperature sensor + PT100 probe

03

Signal lines

04

The line of control

Accessory

01

SMS Type wire diameter

Ф38/Ф32

1

06Cr19Ni10

02

20/32 matcher

DN20/Ф32

1

06Cr19Ni10

03

Clamp butterfly valve pad

/

30

The silicone

04

SMS Butterfly valve rubber gasket

/

10

The silicone

05

Inflatable head

SMS 32/φ10

2

06Cr19Ni10

06

Air hose

Ф12

10m

PU

Form a complete set of tools

01

Adjustable wrench

L=375×46

1

/

02

Cross screwdriver

150×6

1

/

03

One word screwdriver

150×6

1

/

04

pliers

/

1

/

05

Hook spanner

/

1

Stainless Steel

06

tongs

L350

1

/
